WALL MOUNTING TASKS MADE EASY

NO MORE GUESSWORK.
NO MORE UNNECESSARY DRYWALL HOLES.

NO PRE-DRILLING REQUIRED

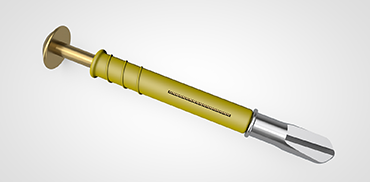

SpeedyAnchorTM takes the guesswork out of shelving installation, TV mounts and a host of other wall mounting tasks with first time success almost guaranteed.


Unlike traditional wall mounting hardware that requires pre-drilling, SpeedyAnchorTM employs a patented design that makes quick work of drilling through drywall with an integrated drilling tip. Then, SpeedyAnchorTM automatically morphs a locking retainer nut behind the wall board to securely snug the anchor in place.

INSTALLATION TIPS

DRILLS LIKE A DRILL BIT.
SECURES A VARIETY OF MOUNTING INSTALLATIONS.

INSERT THROUGH ITEM TO BE HUNG

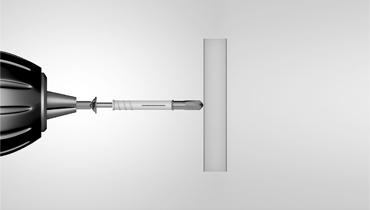

Insert SpeedyAnchorTM through an opening in the item to be hung. With a hand-drill and #2 Phillips bit, press SpeedyAnchorTM slightly into the drywall. Your drill should be set at LOW SPEED and a moderate clutch setting.


USE LIGHT PRESSURE & DRILL SLOWLY

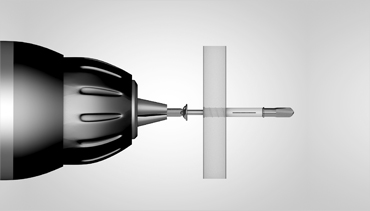

Using LIGHT PRESSURE, drill SpeedyAnchorTM slowly until a pilot hole is made. Continue drilling until the nylon sheath is flush against the wall. You will feel the screw slowing down as the nylon sheath pulls snug against the back side of the drywall. DO NOT SPEED UP THE DRILL.

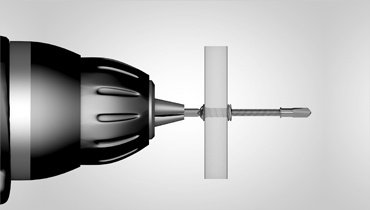

WAIT FOR DRILL MOTOR TO SLOW


Slow drilling when the screw head is flush against the wall. For use in 3/8”, 1/2” or 5/8” drywall. Weight on package reflects maximum load in 1/2” drywall. Weight shown on package is for items hung flush to the wall and may be less for those hung out from the wall. Do not use for ceiling applications.


LIMITED WARRANTY


SpeedyAnchorTM is sold “AS IS” without any express or implied warranty. Sunlite Industrial Corp. is not responsible for improper installation or misuse. Sunlite Industrial Corp’s sole liability, if any, shall be to replace this product or to refund the purchase price. NOTE: Load ratings are comparative only and not exact..
